Netstat is a command-line utility available on Windows operating systems that allows you to display information about network connections, routing tables, interface statistics, masquerade connections, etc. You can use netstat -ano to see active network connections and their associated process IDs (PIDs), which can help you identify potential rogue connections to your machine.

Here’s a step-by-step tutorial on how to use netstat and the most common switches (-ano).

Step 1: Open Command Prompt

• Press Win + R to open the Run dialog.
• Type “cmd” and press Enter to open the Command Prompt.

Step 2: Run netstat -ano

In the Command Prompt window, type the following command and press Enter:

netstat -ano

This command will display a list of active network connections and associated PIDs.

Step 3: Analyze the Output

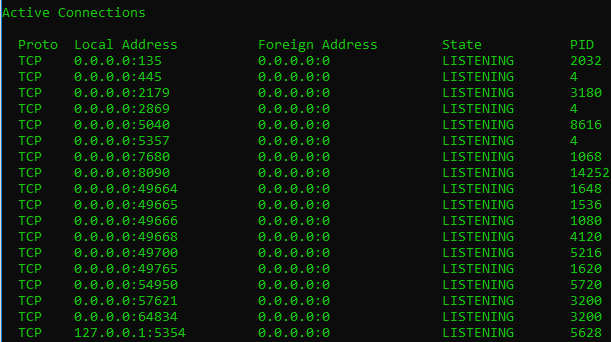

The output of netstat -ano will have several columns:

• Proto: Indicates the protocol used (e.g., TCP, UDP).
• Local Address: Shows the local IP address and port.
• Foreign Address: Displays the remote IP address and port.
• State: Shows the state of the connection (e.g., ESTABLISHED, TIME_WAIT).
• PID: Indicates the Process ID associated with the connection.

Here’s how to analyze the output:

• Look for any unfamiliar or suspicious IP addresses in the “Foreign Address” column. These could potentially be rogue connections.
• Check the “State” column to see if any connections are in unusual states (e.g., TIME_WAIT for a long time).
• Identify the PID associated with each connection in the “PID” column. You can cross-reference this PID with the Task Manager to determine which process is responsible for the connection.

Step 4: Investigate Suspicious Connections

If you find any connections that you suspect are rogue or unwanted, take the following actions:

1. Identify the Process: Use the PID from the “PID” column to locate the associated process in Task Manager. Right-click the Taskbar, select “Task Manager,” go to the “Details” tab, and find the process with the matching PID.
2. Research the Process: If the process is unfamiliar or suspicious, research it online to determine if it’s legitimate or potential malware. Be cautious before terminating any processes.
3. Terminate Suspicious Processes: If you’re certain that a process is malicious or unwanted, you can end the process in Task Manager by right-clicking the process and selecting “End Task.” However, exercise caution, as terminating critical system processes can cause system instability; know what you’re doing.
4. Firewall and Antivirus: Ensure that you have a firewall and antivirus software installed and updated. They can help detect and block unwanted network connections and malware.

For more switches and details, visit Microsoft’s documentation on Netstat here. You may also like our article on detecting malware on your machine.

“HyperText Transfer Protocol Secure” is what HTTPS stands for. It is the standard protocol for sending and getting data over the web, but it adds an extra layer of security. This extra protection is shown by the “S” in HTTPS.

When you use HTTPS to connect to a website, the data you send and receive is protected. This means that even if someone gets a hold of the data, they won’t be able to figure out what it says because it has been turned into a code. The data is encrypted, so only the website and your browser have the “keys” to decode and read it.

The Padlock Icon: When you visit a website, you might see a small padlock icon in the address bar, usually next to the website’s URL. This padlock lets you know that the website uses HTTPS and is safe for entering your data; it has an SSL/TLS certificate. The website has a confirmed layer of protection that ensures the information your browser sends to the website stays private and safe.

When HTTPS and the padlock are used together, users know that their data is protected and that the website they’re using has been verified as a safe place that cares about protecting user data. This is especially important for websites where private information is shared, like credit card numbers or personal information.

In this hyper-connected digital age, the internet’s complexity is sometimes hidden by its ease of use. Clicking on a link or entering in a URL opens up a world of knowledge, entertainment, and social interaction, hiding the complex protocols, servers, and data exchanges behind the scenes. Instantaneous global connectedness, once a dream, is now part of our daily lives, so we forget its impact. Human creativity has made such a powerful instrument as ordinary and intuitive as flipping a light switch, but we must occasionally pause and appreciate the internet’s technology and teamwork.

Accessing the internet from any device involves multiple intricate steps. Here’s a granular breakdown of what typically happens:

1. Input URL & Initial Check: You input a URL (e.g., www.cybertipsguide.com) into a web browser. The browser checks its cache to see if it already has the IP address for the URL.
2. Hosts File: If the IP address isn’t in the browser’s cache, the computer checks the local “hosts” file for any static entries that match the domain name.
3. DNS Query: If the “hosts” file doesn’t contain the domain’s IP address, the system queries a DNS (Domain Name System). First, the computer contacts a local recursive or caching DNS server, often provided by your ISP. If this server doesn’t have the IP address cached from previous requests, it will proceed with the DNS resolution process. DNS Resolution Process: Root Name Server: The DNS resolver queries a root name server, which responds with the address of a Top-Level Domain (TLD) server. TLD Name Server: The resolver then asks the TLD server (e.g., .com) about the specific domain. Domain’s Name Server: The TLD server responds with the IP address of the domain’s name server. The resolver then queries this server.
4. Obtain IP Address: The domain’s name server finally provides the IP address for the domain, which gets sent back to the computer.
5. ARP (Address Resolution Protocol): Before the computer can send data packets to the web server, it needs to know the physical MAC address of the next device in the data path, usually your router. If your computer doesn’t already have the router’s MAC address cached, it uses ARP to obtain it. The computer broadcasts an ARP request onto the local network, asking, “Who has this IP address?” The device with that IP (usually the router) responds with its MAC address.
6. Establish Connection: With the web server’s IP address and the router’s MAC address known, the computer initiates a connection using the TCP/IP protocol. This involves a TCP “three-way handshake” to establish a reliable connection: The computer sends a SYN packet. The web server replies with a SYN-ACK packet. The computer responds back with an ACK packet.
7. Data Transfer: Once the connection is established, the browser sends an HTTP request to the web server, asking for the desired webpage. The web server processes the request and sends back the requested data, usually as an HTTP response containing web content like HTML, CSS, and JavaScript.
8. Render the Page: The browser receives the data and processes it. It will render the page, execute scripts, apply styles, and display content.
9. Close Connection: After the data transfer is complete and the webpage rendered, the computer sends a message to terminate the TCP connection with the server. This involves another handshake: The computer sends a FIN packet. The server acknowledges with a FIN-ACK. The server sends its own FIN packet. The computer responds with an ACK, finalizing the termination.

This entire process, spanning from entering a URL to viewing a fully loaded webpage, might seem lengthy, but with modern technology, it usually takes mere seconds.

You might enjoy reading more about how DNS works, visit Microsoft’s article. You should also read our article about Netstat.

The arrival of 5G heralds a new era in wireless technology, promising faster speeds, lower latency, and a more interconnected world. However, with these advances come new challenges, especially in the realm of security. Both consumers and cybersecurity teams must be aware of the potential threats and vulnerabilities associated with 5G. Let’s delve into what these are and how to prepare for them.

The Promise of 5G:

5G is not just about speed, though that’s a significant advantage. It’s about creating an infrastructure that supports a vast ecosystem of interconnected devices, from smartphones to self-driving cars, smart homes, and the broader Internet of Things (IoT). This expansive connectivity will lead to more data being transmitted and, consequently, more potential points of vulnerability.

Consumer Concerns:

• Privacy Risks: As more devices connect, more personal data gets transmitted over the network. This proliferation of data can make consumers more susceptible to privacy breaches.
• IoT Vulnerabilities: Many IoT devices, like smart thermostats or refrigerators, may lack robust built-in security features, making them potential entry points for malicious actors.
• Network Spoofing: Cybercriminals can set up rogue 5G towers to mimic legitimate networks, tricking users into connecting and potentially intercepting data.
• Cybersecurity Team Concerns:
• Expanded Attack Surface: The vast number of connected devices means there are more potential entry points for cyberattacks.
• Supply Chain Vulnerabilities: As 5G infrastructure is built out, there’s a risk of vulnerabilities being introduced through equipment suppliers or service providers.
• Network Security: Traditional security measures might not be sufficient for 5G’s architecture, necessitating the development of new strategies and tools.
• State-sponsored Threats: As 5G becomes a backbone of global communications, state-sponsored actors might see it as a high-value target, requiring a higher level of defense strategy.

What Can Be Done?

For Consumers:

• Educate Yourself: Understand your devices, how they connect, and what data they transmit.
• Update Regularly: Ensure your devices receive regular security updates.
• Secure Connections: Only connect to trusted networks; be wary of public Wi-Fi, even if it’s 5G.

For Cybersecurity Teams:

• Continuous Monitoring: Adopt real-time monitoring tools that can detect unusual activity on the network.
• Embrace Zero Trust: Given the vastness of 5G networks, consider a zero-trust model where every request is verified.
• Collaboration: Work closely with service providers, equipment suppliers, and industry groups to share information about threats and best practices.

Wrapping Up:

5G is an exciting technological leap forward, but with its capabilities come new challenges. By being proactive and informed, both consumers and cybersecurity teams can enjoy the benefits of 5G while effectively managing the associated risks. The future is connected, and it can also be secure with the right precautions.
